Building a Straight Wall up a Slope

Building a Straight Wall up a Slope

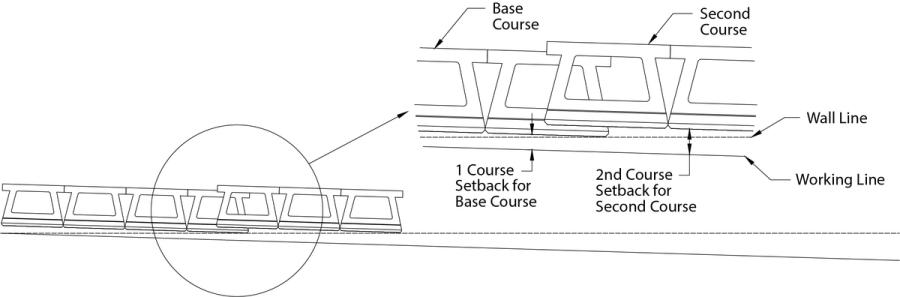

Segmental retaining walls have an inherent setback or batter to the walls. This reduces the pressure behind the walls and makes it possible to potentially build taller gravity walls. This setback is a wonderful thing; however, it does create a small inconvenience when building a straight wall up a slope. What happens is, when a wall is being installed the wall will start to “move away” from a straight line as it goes up in elevation.

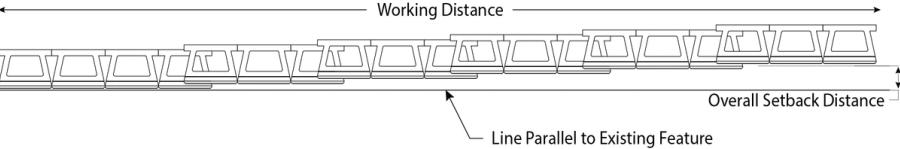

Not to worry, Allan Block has a solution laid out in our Tech Sheets to eliminate this scenario, Building Straight Walls Up a Slope. This tech sheet provides the installer with a method to adjust the wall line to match up with the desired straight line as they step up the wall.

For more information, refer to Tech Sheet #1208
